ACR1222L NFC Reader Guide: Specifications, Applications, and Deployment Insights for Transit and Payment Systems

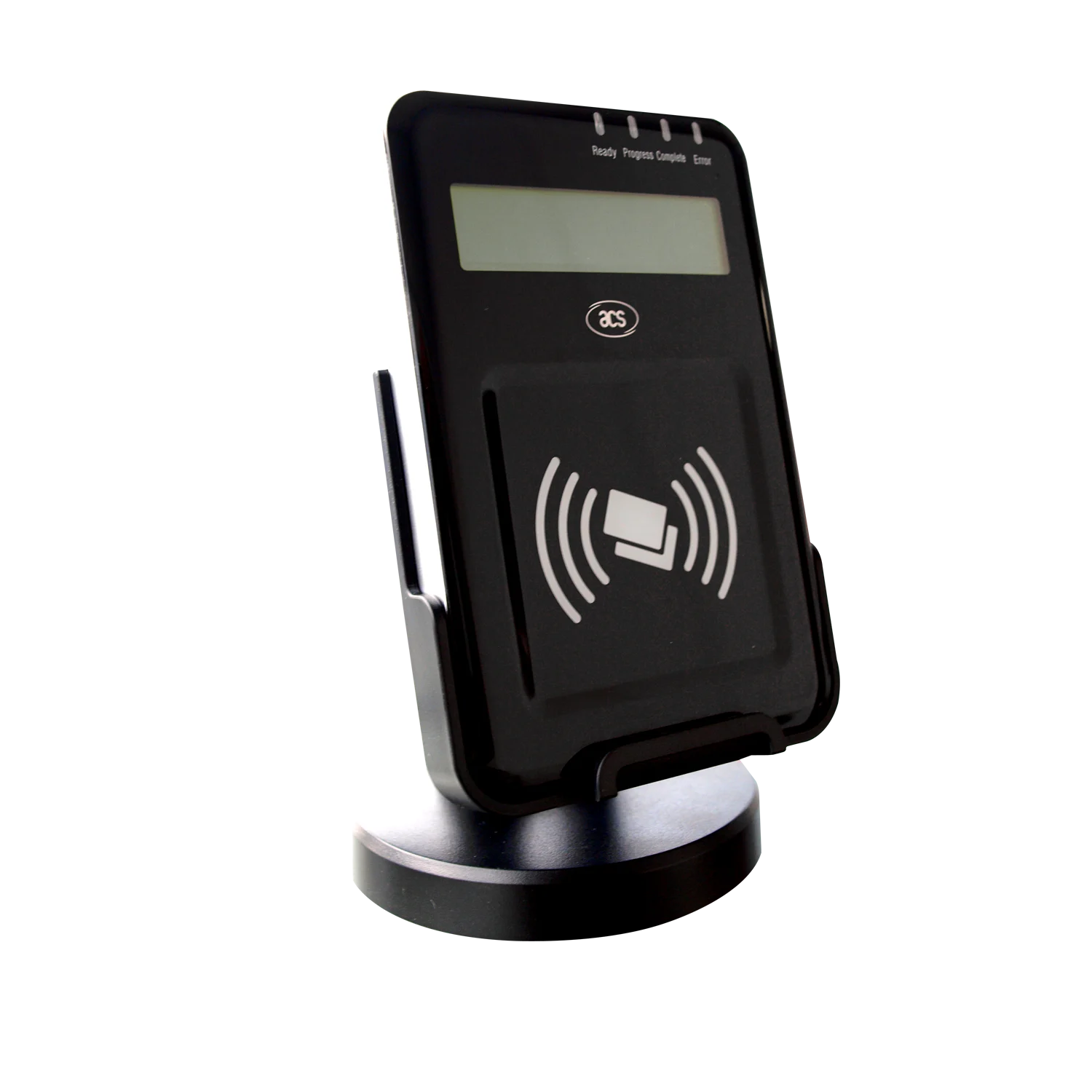

The ACR1222L is a PC-linked NFC contactless reader equipped with an LCD display and USB interface. Built on 13.56 MHz RFID technology and compliant with ISO/IEC 18092, it supports ISO 14443 Type A/B cards, MIFARE®, FeliCa, and all four NFC tag types. With PC/SC compatibility, multi-language display, and three SAM slots, the ACR1222L is widely used in public transportation, e-payment, loyalty programs, and secure access control.
What Makes the ACR1222L Suitable for Transit and Payment Projects
The ACR1222L is designed for environments where transaction feedback, user guidance, and operational reliability are critical.
Key Technical Highlights
- USB 2.0 Full-Speed, CCID and PC/SC compliant
- Read/write speed up to 424 kbps
- Reading distance up to 50 mm (tag dependent)
- Built-in antenna and anti-collision mechanism
- Three ISO 7816 SAM slots for secure credential handling
- 2-line graphic LCD with multi-language support
- User-programmable LEDs and buzzer for visual/audio prompts
- Firmware upgradable for long-term maintenance
User Interaction Advantages
The LCD and buzzer help reduce operational errors by providing:
- Tap confirmation and status messages
- Language-localized prompts (Chinese, English, Japanese, European languages)
- Clear feedback in crowded or noisy environments
- Intuitive flow for passengers and staff
For public transport and ticketing systems, these features improve boarding efficiency, accessibility, and transaction transparency.
Global Market Applications and Deployment Scenarios
Public Transport Ticketing
Used in:
- Bus validators
- Metro station kiosks
- Fare top-up terminals
- Passenger self-service check-in
Benefits for operators:
- Supports widely-used card ecosystems (MIFARE / FeliCa / NFC tags)
- SAM security for fare credentials and keys
- Stable performance for high-frequency daily operations
E-Payment and Retail Loyalty
Typical use cases:
- Stored-value terminals
- Membership & reward programs
- Campus and corporate payment systems
The combination of PC-linked operation and LCD status display improves cashier workflow and customer interaction.
Access Control and Workforce Management
- Gate entry terminals
- Time-attendance systems
- Secure facility authentication
With multi-platform driver support (Windows, Linux, macOS, Android, Solaris), the ACR1222L integrates well into enterprise and industrial software environments.
Technical Specifications Overview
Supported Standards
- ISO/IEC 18092 NFC
- ISO 14443 Type A & B
- MIFARE®, FeliCa
- PC/SC & CCID
- ISO 7816 (SAM slots)
Display & Indicators
- 128 × 32 graphical LCD (2 lines × 16 chars)
- Yellow-green backlight
- 4 programmable LEDs + buzzer
Security
- Three SAM slots
- T=0 / T=1 protocols
- Class A (5 V)
Certification Coverage
- CE, FCC, RoHS, REACH
- VCCI (Japan), KC (Korea)
- Microsoft WHQL
These certifications make the device suitable for multi-country export and government procurement requirements.
Design Considerations for System Integrators
When integrating the ACR1222L RFID Reader Writer into transit or payment projects:
- Ensure card type alignment with existing infrastructure (MIFARE / FeliCa / NFC tags)
- Use SAM modules where encryption or fare keys are required
- Optimize reading distance vs. security zone
- Provide clear UX prompts on the LCD
- Validate firmware version compatibility during roll-outs
- Follow country-specific compliance standards when exporting
These practices help reduce deployment friction and improve project stability.
Customer Pain Points the ACR1222L Helps Solve
- Unclear transaction prompts → LCD + buzzer improves usability
- Multi-language environments → built-in language support
- Security-sensitive fare systems → SAM-based key protection
- Frequent updating requirements → USB firmware upgrade support
- Cross-platform development complexity → PC/SC & CCID compatibility
The result is lower integration cost, higher reliability, and better passenger experience.
Frequently Asked Questions — Common Questions About the ACR1222L NFC Reader
Q1: Which NFC cards and tags are compatible with the ACR1222L?
It supports ISO 14443 Type A/B cards, MIFARE®, FeliCa, and all four NFC tag types under ISO/IEC 18092.
Q2: Is the ACR1222L suitable for public transport ticketing systems?
Yes. With SAM security, LCD feedback, and multi-language prompts, it is widely used in bus, metro, and stored-value card environments.
Q3: What operating systems does the ACR1222L support?
Drivers are available for Windows, Linux, macOS, Android, and Solaris.
Q4: How far can the reader detect a card?
Up to approximately 50 mm, depending on card type and environment.
Q5: Can the firmware be upgraded after installation?
Yes, USB firmware upgrade is supported to extend lifecycle and compatibility.
Conclusion
The ACR1222L NFC reader combines robust hardware design, security-ready architecture, and user-centric interaction features, making it a reliable choice for transportation ticketing, e-payment terminals, and secure access systems across global markets. Its strong standards compliance and multi-platform support help integrators deploy consistent, scalable, and future-ready solutions.
