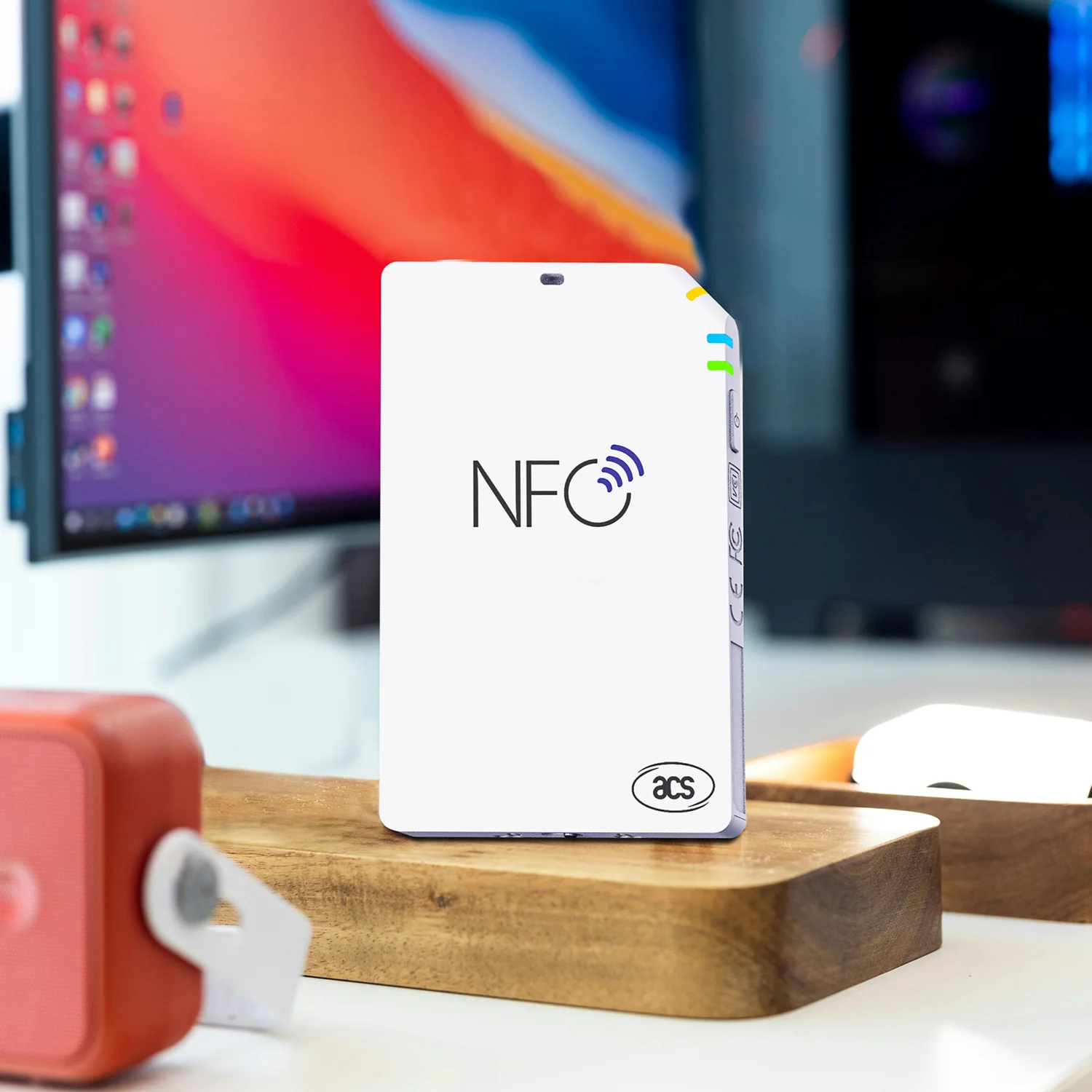

Contactless technology is now a fundamental part of how people pay, authenticate themselves, and interact with digital systems. The ACR1555U Bluetooth NFC Reader combines multiple connectivity options with broad card support and advanced security features. It is designed for environments where reliability, speed, and user experience are essential — from point‑of‑sale terminals and mobile payment applications to healthcare identity checks and government access systems.
Technical Overview: What the ACR1555U Reader Offers
The ACR1555U is a compact and portable contactless reader that supports the most widely used contactless card standards:
- ISO 14443 Type A and Type B cards
- ISO 15693 contactless cards
- MIFARE® cards
- FeliCa cards
- All five Near Field Communication tag types
This wide compatibility ensures that the reader can work with transit cards, payment cards, loyalty tags, identification media and more — covering the major standards used in Europe, North America, Latin America and Asia.
Connectivity is flexible. The device supports:
- Bluetooth 5.2 (Bluetooth Low Energy) for pairing with mobile devices
- Universal Serial Bus Full Speed for connection to laptops, kiosks, and embedded systems
Both connection modes are encrypted and designed for robust performance in real‑world use.
Performance and Security Features
The ACR1555U is designed for environments where performance and security are critical:
- High‑speed data transmission: Read and write up to 848 kilobits per second
- AES‑128 encryption: Provides secure messaging between the reader and connected device
- Automatic lockout after repeated unauthorized access attempts
- Secure Access Module slot compliant with international standards for secure key storage
Together, these features ensure that transactions and identity reads are fast, accurate, and protected against tampering or data exposure.
The device also includes visual and audible feedback — LEDs and a buzzer — to confirm status, reduce user uncertainty, and guide users through each interaction.
Portable and User‑Friendly Design
At around 31.5 grams and with an integrated rechargeable battery, the ACR1555U is easy to carry and integrate into mobile workflows. The included transparent card holder protects the device and makes it convenient for field deployments.
This portability makes it especially suitable for:
- Mobile point‑of‑sale systems
- On‑site identity verification
- Temporary ticketing and event check‑in stations
- Field service and inspection roles
Whether used with a smartphone, tablet, or PC, the Bluetooth connectivity provides freedom of movement without compromising security or speed.
Global Applications Across Markets
1. Contactless Payments in Retail and Transit
The ACR1555U supports a broad set of contactless cards and tag types, making it suitable for:
- Retail point‑of‑sale terminals
- Mobile payment acceptance
- Public transit validator upgrades
- Stored‑value ticketing systems
Retailers and transit agencies benefit from fast reads, secure data handling, and flexible integration with existing back‑end systems.
2. Healthcare Identity Verification
Hospitals and clinics use contactless readers for:
- Patient identification at check‑in
- Secure access to electronic medical records
- Staff badge verification
The reader’s compatibility with multiple operating systems and encryption support help ensure compliance with privacy regulations in healthcare environments.
3. Government and Enterprise Access Control
For secure facility access, time‑attendance logging, and identity validation, the ACR1555U offers:
- Card emulation mode
- HID keyboard emulation over Bluetooth
- Secure communication for sensitive environments
It is used in government offices, corporate campuses, and managed facilities where secure contactless authentication is a priority.
4. Internet‑of‑Things and Embedded Systems
With Bluetooth connectivity and low power requirements, the reader integrates smoothly with:
- Smart kiosks
- Embedded access terminals
- Mobile inspection tools
- Remote service applications
Developers can pair the reader with tablets and handheld devices to expand interaction capabilities beyond traditional fixed terminals.
User Experience and Integration Benefits
From a deployment and user perspective, the ACR1555U stands out for:
- Cross‑platform support, including Windows, macOS, Linux, Android, iOS, and iPadOS
- Clear visual and audible feedback that reduces user errors
- Rechargeable battery for consistent mobile operation
- Broad certification coverage for global compliance and export
These elements make life easier for integrators, support teams, and end users alike.
Frequently Asked Questions
Which contactless card and tag technologies does the ACR1555U support?
The ACR1555U supports ISO 14443 Type A and Type B smart cards, ISO 15693 contactless cards, MIFARE® and FeliCa cards, as well as all five types of Near Field Communication tags defined in ISO/IEC 18092. This ensures compatibility with a wide range of payment cards, transit cards, loyalty cards, and secure access badges worldwide.
Can the ACR1555U be used with both Bluetooth and Universal Serial Bus connectivity?
Yes. The reader offers Bluetooth 5.2 (Bluetooth Low Energy) for mobile device connectivity and Universal Serial Bus Full Speed for reliable connection to laptops, kiosks, and embedded systems. Both options provide secure, high-speed communication.
Which operating systems are compatible with the ACR1555U?
It supports Windows, Linux, macOS 10.7 or above, Android 4.3 or above, iOS 12.0 or above, and iPadOS 16.0 or above. This wide compatibility allows deployment across global markets and multiple device types.
How does the ACR1555U protect sensitive data during transactions?
The reader uses AES-128 encryption for secure data transmission, a Secure Access Module slot for storing cryptographic keys, and automatic lockout after repeated unauthorized access attempts, ensuring high-level protection for financial and identity applications.
Is the ACR1555U portable and suitable for field use?
Yes. Its lightweight design, rechargeable Lithium-ion battery, and Bluetooth connectivity make it ideal for mobile point-of-sale systems, temporary ticketing stations, or remote identity verification applications.
What is card emulation mode, and how does ACR1555U support it?
Card emulation mode allows the reader to simulate a contactless card, enabling mobile payment prototyping, testing secure access systems, and interacting with other NFC devices as if it were a card itself.
How does Bluetooth Human Interface Device keyboard emulation work?
Bluetooth HID keyboard emulation allows the ACR1555U to transmit card or tag data to a host device as if it were typed from a keyboard. This simplifies integration with existing software that accepts keyboard input for rapid deployment.
What is the maximum reading speed and distance for contactless cards?
The reader can perform high-speed read/write operations up to 848 kilobits per second. Depending on the card type, the maximum reading distance can reach several centimeters, ensuring fast and accurate scanning for payments or access control.
Can the ACR1555U be used in international transit and payment systems?
Yes. Its broad support for ISO standards, MIFARE®, FeliCa, and NFC tags makes it suitable for transit card validation, mobile ticketing, and retail payments in Europe, North America, Latin America, and Asia-Pacific regions.
How does the ACR1555U improve user experience in high-traffic environments?
Visual and audible feedback through bi-color LEDs and a buzzer confirms successful scans or errors. This reduces user confusion, minimizes transaction delays, and streamlines workflows in retail, transit, and event settings.
Can firmware be updated on the ACR1555U to support new features or standards?
Yes. The reader supports firmware updates through both USB and Bluetooth, allowing integration of new standards, security enhancements, and performance optimizations without replacing the device.
What certifications ensure compliance for global deployment?
The ACR1555U meets international safety and compliance standards, including IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, Bluetooth BQB, MIC, TELEC, and Microsoft Windows Hardware Quality Labs, ensuring reliable deployment in multiple countries.
Conclusion
The ACR1555U Bluetooth NFC Reader provides a flexible, secure, and portable solution for contactless payments, identity verification, and embedded system integration. With support for a wide range of card standards, dual connectivity, and advanced security features, it serves commercial, healthcare, and government applications around the world.
By focusing on speed, security, and user experience, this reader helps organizations deliver reliable contactless interactions while meeting the demands of modern integration environments.
