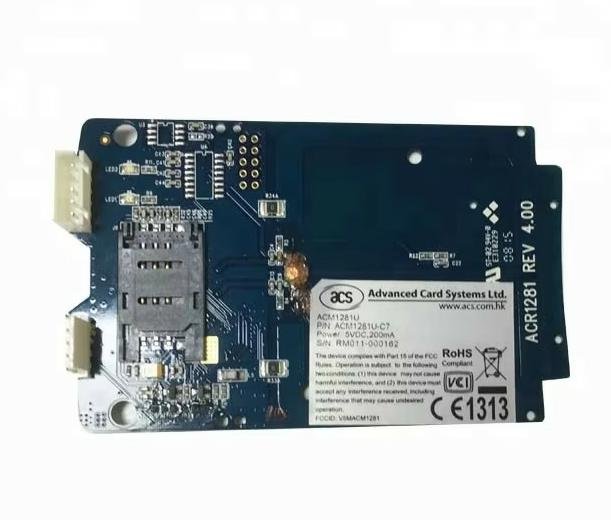

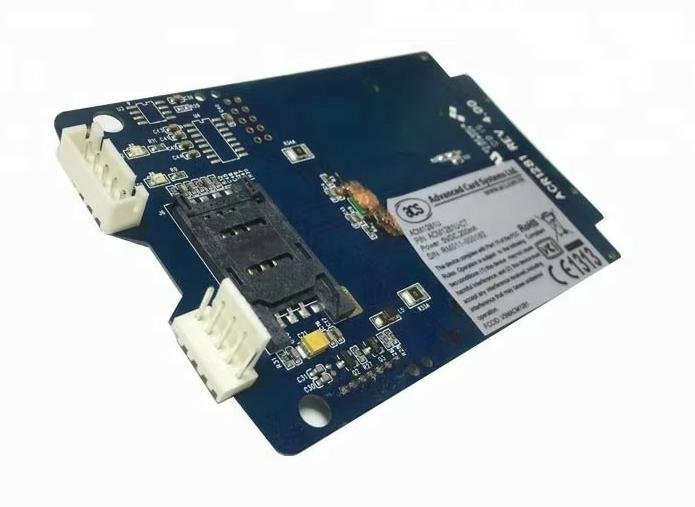

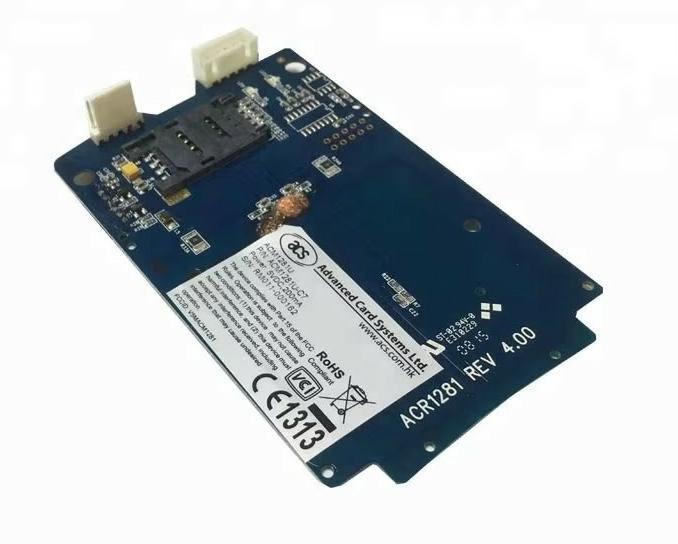

ACM1281U-C7 USB NFC Contactless Smart Card Reader Module
The ACM1281U-C7 is a professional-grade USB NFC contactless smart card reader Module, designed for secure, efficient, and versatile applications. Certified by the NFC Forum, it supports ISO 14443 Type A/B standards, making it compatible with a wide range of NFC tags, smart cards, and mobile devices.
Key Features
NFC & RFID Compatibility
Supports MIFARE®, Ultralight, and ISO 14443 Type A/B cards.
Read/write speed up to 848 kbps.
Card reading distance up to 50 mm (depending on tag type).
Secure & Reliable
Advanced encryption and authentication protocols.
ISO 7816-compliant SAM slot for secure transactions.
Robust IP65 waterproof design for indoor and outdoor use.
USB Connectivity & Integration
USB 2.0 Full Speed interface with plug-and-play CCID support.
Supports PC/SC and CT-API for seamless integration.
Compatible with Windows®, Linux®, macOS®, Solaris™, Android™.
Built-in Peripherals
Bi-color LEDs (Red/Green) for status indication.
Monotone buzzer for feedback.
Firmware upgradeable via USB interface.
Applications
Access Control: Secure entry for offices, hotels, and restricted areas.
Contactless Payments: Mobile and card-based payment processing.
Product Authentication: Verify brand authenticity with NFC tags.
Inventory & Asset Management: Track items efficiently with RFID technology.
Technical Specifications
Physical Characteristics
Dimensions: 106.6 × 67 × 16 mm
Weight: 20.8 g
USB Interface
Protocol: USB CCID
Connector Type: Standard Type-A
Speed: USB Full Speed (12 Mbps)
Cable: 1.0 m, detachable (optional)
Contactless Smart Card Interface
Standard: ISO 14443 A/B Parts 1-4
Protocol: ISO14443-4, T=CL MIFARE® Classic
Antenna Size: 65 × 60 mm
SAM Card Interface
Number of Slots: 1
Standard: ISO 7816 Parts 1-3, Class A (5 V)
Protocol: T=0, T=1
Usage Instructions
Connect the ACM1281U-C7 via USB to your computer or Android/iOS device.
Install the NFC software or SDK.
Begin reading and writing NFC tags instantly.
Certifications & Compliance
ISO 7816 (SAM Slot)
ISO 14443
USB Full Speed, PC/SC, CCID
CE, FCC, RoHS, REACH, Microsoft® WHQL
FAQ
What devices are compatible with ACM1281U-C7?
Works with any USB-compatible computer and Android/iOS devices.
Can it read all NFC card types?
Yes, it supports MIFARE®, Ultralight, and ISO 14443 Type A/B cards.
Is it secure for sensitive transactions?
Yes, it uses advanced encryption and authentication protocols.
Can it be used for access control systems?
Yes, ideal for secure access management in offices, hotels, and facilities.
