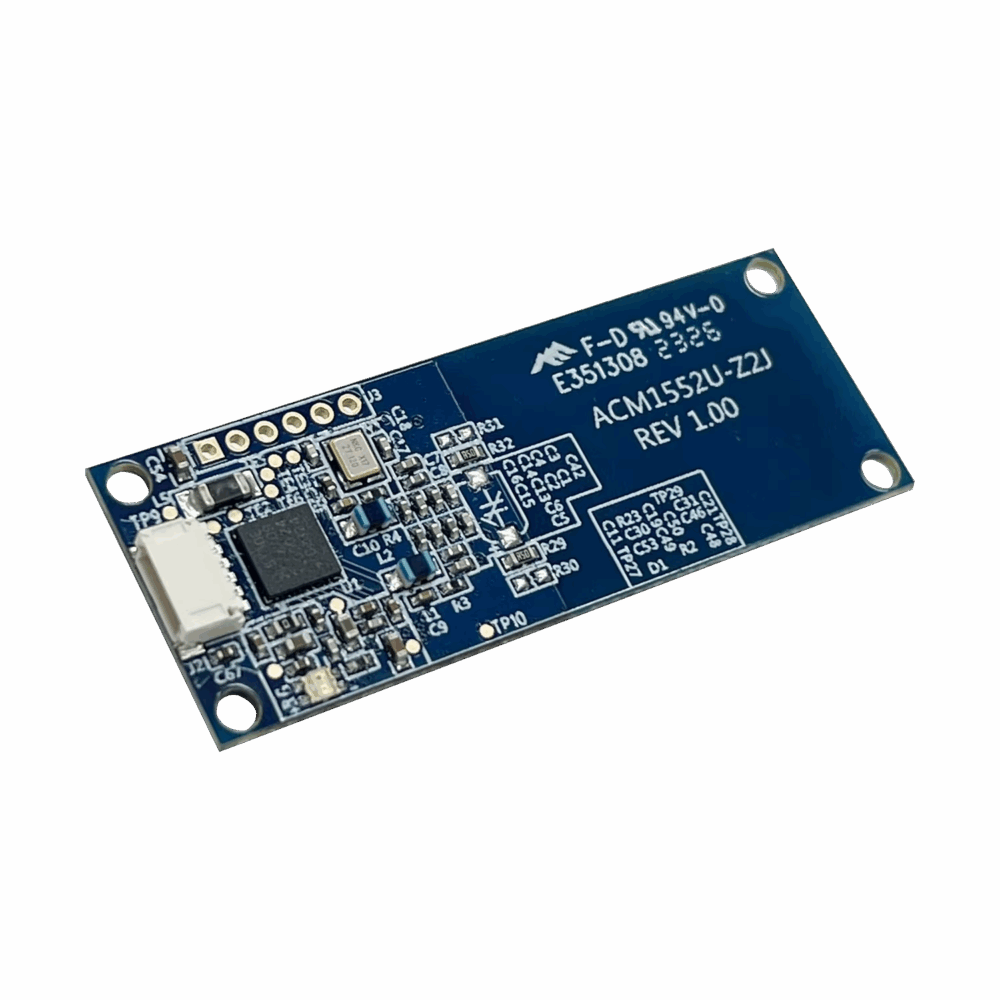

ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module
ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer ModuleNFC Reader Module is developed based on the 13.56 MHz contactless technology. It can access contactless card and devices following the ISO 14443, ISO 15693, and ISO 18092 standards. This smart card reader module is designed for fast and easy integration into embedded systems.
ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module is a CCID & PC/SC compliant reader, this plug-and-play NFC reader makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also supports three NFC modes:
- Smart Card Reader/Writer
- Card Emulation
- Keyboard Emulation (Configured by this tool)
The compact size of the ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module makes it an excellent choice for integration into small machines. Its small form factor offers flexibility and seamless integration into various applications, such as handheld devices and kiosks without compromising their functionality or usability.
Why Choose ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module?
This NFC reader is packed with modern features, making it a must-have for any tech-savvy individual or organization.
- USB 2.0 Full Speed Interface
- CCID Compliance
- Contactless Smart Card Support:
- Read/Write speed up to 848 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
- Supports MIFARE Classic®, MIFARE®, DESFire®, MIFARE Ultralight®, MIFARE Plus®, FeliCa and Topaz
- Built-in anti-collision feature
- Supports extended APDU (max. 64 kbytes)
- NFC Support:
- Smart Card Reader/Writer Mode
- Card Emulation Mode
- Keyboard Emulation Mode
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Peripherals:
- User-controllable bi-color LED (Blue & Green)
- Compact Size
- USB Firmware Upgradability
Product Outline
Features and Specifications
The ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module boasts impressive technical specifications:
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 52.0 x 20.0 x 5.7 |
| Weight (g) | 3.4 |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | 5pin, 1mm pitch, JST SH series compatible |
| Power Source | From USB port |
| Speed | USB 2.0 Full Speed (12 Mbps) compatible with USB 3.0 |
| Cable Length | 1m, Detachable (Upon Request) |
| Contactless Smart Card Interface | |
| Standard | ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO 15693 ISO 18092 NFC Tags FeliCa |
| Built-in Peripherals | |
| LED | 1 bi-color: Blue and Green |
| Other Features | |
| Other Features | Supported Card Types:ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE Classic®, MIFARE DESFire®, MIFARE Ultralight®, MIFARE Plus®, FeliCa and TopazSmart Card Reader/Writer, Keyboard Emulation, Card EmulationOther NFC Features: |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | Certifications:IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, WEEE, Microsoft® WHQLUSB CCID, PC/SC Compliance: |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux®, macOS, Android™ |
Benefits of NFC Technology
NFC (Near Field Communication) is a revolutionary technology enabling devices to communicate when brought into proximity. This NFC reader supports contactless payments and smart card interactions, making transactions faster and more user-friendly. With NFC capabilities, users can read and write data to NFC tags and RFID cards without the hassle of physical connections, leading to enhanced convenience and efficiency in various applications.
Easy Integration with Mobile Devices
The ACM1552U-Z2 NFC reader is compatible with both iOS and Android phones, allowing you to utilize the reader’s capabilities directly with your smartphone. This compatibility opens up endless possibilities, ranging from mobile payment solutions to interactive applications via the app store. With smartphones equipped with NFC functionality, you can engage with your environment more effectively through dynamic interactions.
Comprehensive Usage Instructions
To make the most of your ACM1552U-Z2 NFC reader, follow these essential usage guidelines:
- Connection: Plug the USB NFC reader into a compatible device (Windows/Linux/Android).
- Software Installation: Download and install NFC tools from your respective app store.
- Usage:
- To read NFC tags, simply hold the tag close to the reader.
- To write data to tags or cards, follow the prompts in your NFC tools application for guided instructions.
This straightforward process ensures that even those new to NFC can easily maneuver through its functionalities.
Customer Reviews and Feedback
Consumers rave about the ACM1552U-Z2’s performance and durability. Many users have highlighted its compatibility with ISO standards as a significant advantage, allowing it to integrate seamlessly into existing systems. The lightweight and compact design is frequently mentioned, as it takes minimal space and can be used easily in various settings. Overall ratings indicate a high level of customer satisfaction, supporting its status as a leading NFC reader in the market.
Environmental Impact
The ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module is designed keeping environmental consciousness in mind. With an IP65 waterproof rating, it reduces the likelihood of damage in outdoor applications, extending the product’s lifespan and reducing electronic waste. Choosing products like the ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Modulecontributes to a greener planet by minimizing the frequency of replacements.
Troubleshooting Common Issues
When working with NFC technology, users may encounter a few common hurdles. Here’s a brief guide to troubleshooting:
- Failed Reading: Ensure the NFC tag is within the range (usually within a few centimeters).
- Connection Issues: Recheck the USB connection and verify that drivers are installed correctly.
- Incompatibility Problems: Confirm that your operating system is compatible with the NFC tools you are using.
FAQs
1. What types of NFC cards can theACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module?
The ACM1552U-Z2 NFC reader is compatible with several NFC card types, including MIFARE, Desfire, Ultralight, and standard ISO 14443 cards.
2. Is the ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module compatible with Mac systems?
While it primarily supports Windows and Linux, users have experienced success using it with Mac through compatible third-party tools.
3. Can I use the ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module for contactless payments?
Yes, the device is capable of enabling contactless payments when integrated with the right software and tools.
4. Where can I find technical support for the AACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module?
For technical inquiries, please contact us directly through our support email for expert assistance.
In conclusion, the ACM1552U-Z2 NFC Contactless Smart RFID Card Reader Writer Module is an essential tool for anyone looking to incorporate NFC technology into their daily operations. With its robust features, ease of use, and compatibility with various systems, it’s an investment well worth making. Explore the capabilities of this remarkable NFC reader today!
