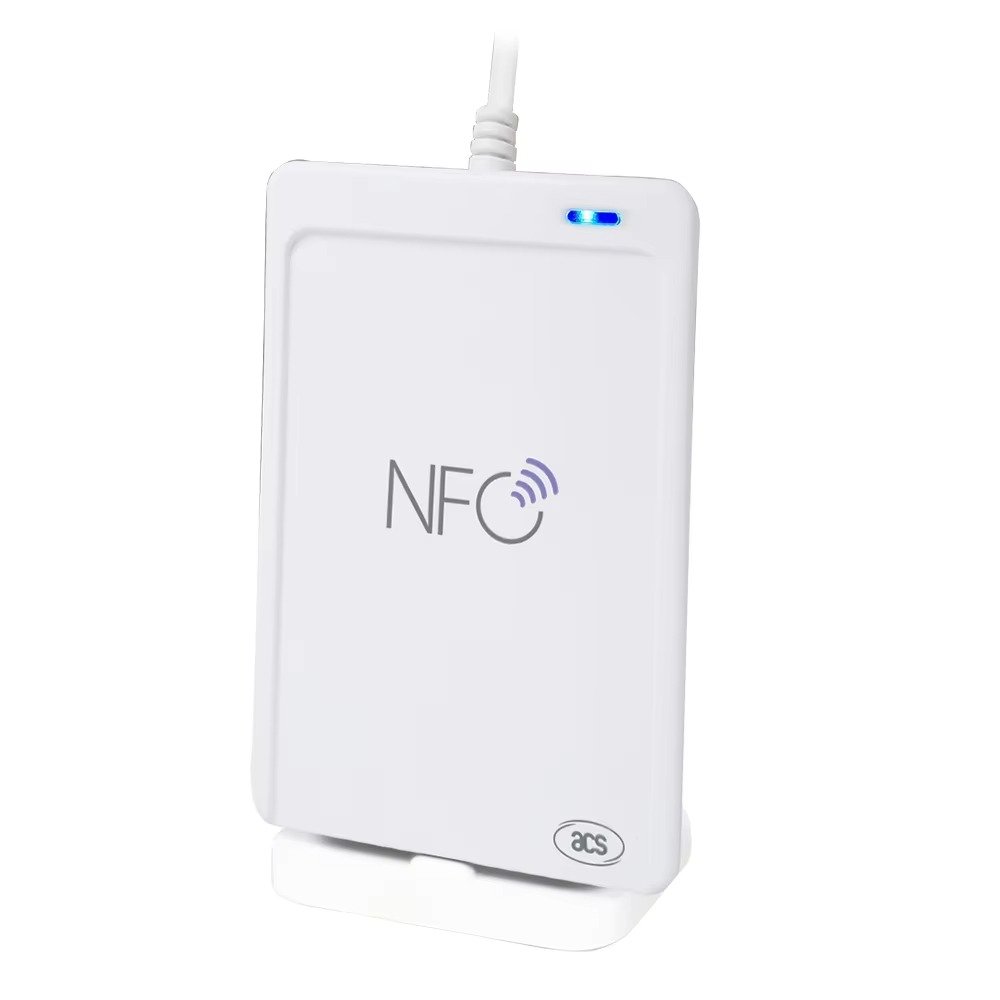

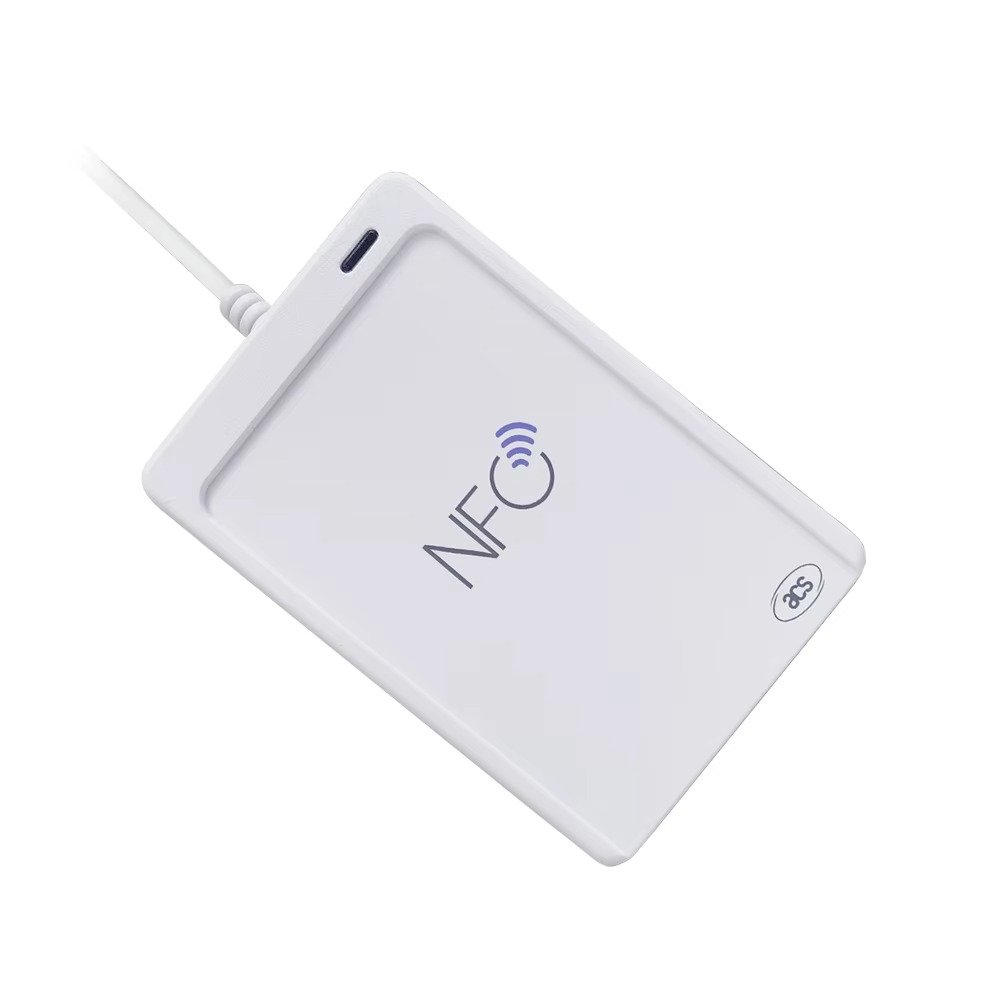

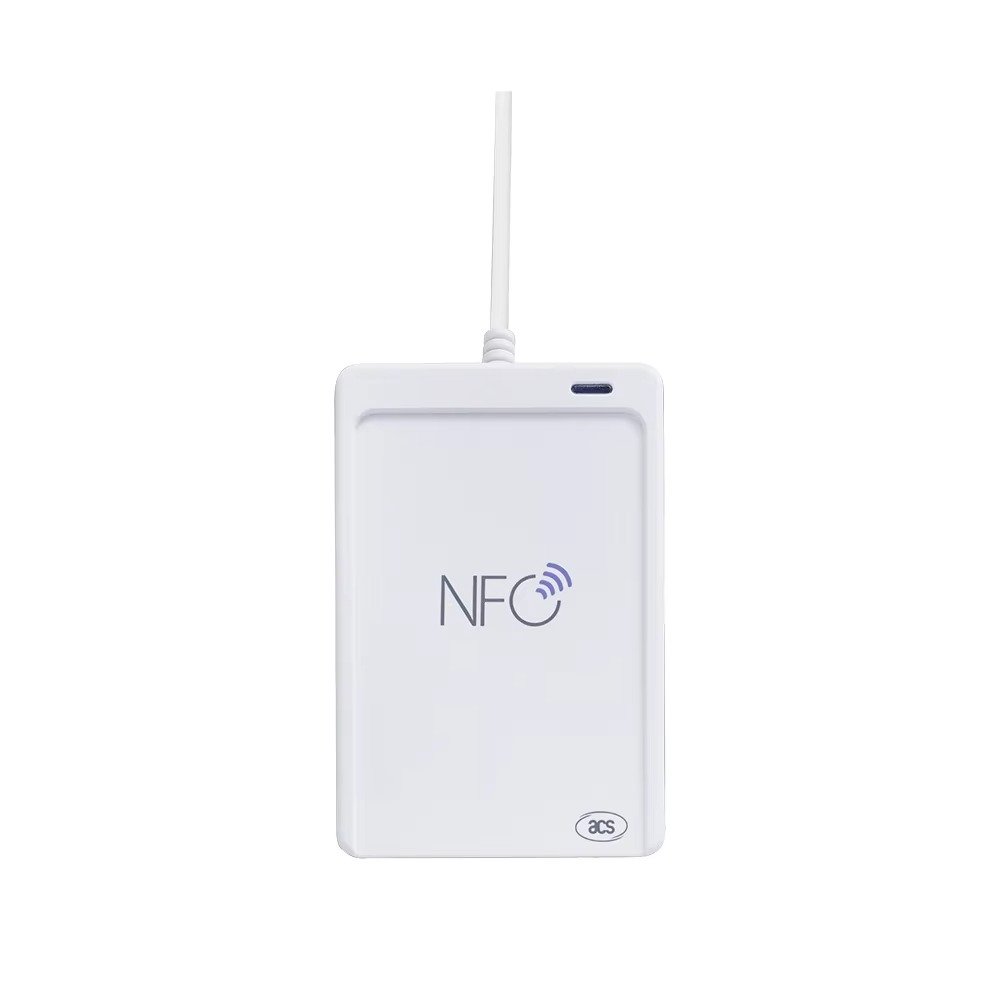

The ACR1552U USB RFID NFC Contactless Card Reader Writer is not just an average NFC reader; it represents the forefront of technology integration and user convenience. With its extended capabilities to read and write NFC tags and RFID cards, this device streamlines transactions and access control systems while providing flexibility for various applications. Perfect for small businesses and enterprises alike, the ACR1552U brings efficiency and speed, enabling you to harness the power of contactless technology.
Features of the ACR1552U NFC Reader
- USB 2.0 Full Speed Interface
- CCID Compliance
- Contactless Smart Card Reader:
- Read/Write speed up to 848 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
- Supports MIFARE® (T=CL), FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
- Built-in anti-collision feature
- Supports extended APDU (max. 64 kbytes)
- One ISO7816-compliant SAM slot (Class A)
- NFC Support
- Smart Card Reader/Writer Mode
- Card Emulation Mode
- Keyboard Emulation Mode
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Peripherals:
- User-controllable bi-color LED (Blue & Green)
- User-controllable buzzer (Monotone)
- One SAM slot
- USB Firmware Upgradability
The Versatility of NFC Tags
NFC tags can be used in diverse applications from mobile payments to event ticketing. The AC1552U NFC reader allows users to read and write NFC tags quickly, making it a valuable tool for various sectors. You can also engage with MIFARE® and NTAG NFC chips, making it suitable for multiple applications, including loyalty programs and data sharing.
Benefits of NFC Tags:
- Instant Access: Quickly read and write data.
- User Engagement: Boost customer interaction through smart tags.
- Versatile Applications: Cater to multiple fields from retail to healthcare.
Benefits of Using a Card Reader
Utilizing an NFC card reader, like the ACR1552U, simplifies the entire transaction process. For businesses, it reduces queue times, enhances customer experiences, and provides secure transactions.
Moreover, utilizing this smart card reader can protect sensitive data through secure connections. Businesses benefit significantly from the easy integration of these readers into points of sale and access control applications.
Advantages:
- Speed and efficiency in transactions.
- Secure access control functionality.
- Integration with existing POS systems.
Why Choose a USB NFC Reader?
USB connectivity presents various advantages over traditional wireless methods. The ACR1552U, with its USB NFC connection, ensures stable performance and reduced interference. This makes it ideal for stationary use in businesses, where reliable data transfer is essential.
Furthermore, a USB reader eliminates the need for battery management and offers straightforward installation, making it accessible for any user regardless of technical knowledge.
Using the ACR1552U with Your Smartphone
The ACR1552U is designed to be compatible with a wide range of smartphones, including the iPhone 7 and other NFC-enabled Android phones. Users can access various mobile applications via the app store to enhance their NFC interactions, be it for payment processing or card reading.
This functionality makes it perfect for businesses wanting to engage customers actively through loyalty programs, digital marketing, or contactless transactions.
Technical Specifications and Compatibility
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | Main Body: 98 x 65 x 12.8 mm Antenna size: 50 x 40 mm |
| Weight (g) | 89 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | USB Type-A (ACR1552U-M1), USB Type-C (ACR1552U-MF) |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1m, Non-detachable |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO 15693 ISO 18092 NFC Tags FeliCa |
| SAM Card Interface | |
| Number of Slots | 1 Standard SIM-sized Card Slot |
| Standard | ISO 7816 Class A (5V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LED | 1 bi-color: Blue and Green |
| Buzzer | Yes |
| Other Features | |
| Other Features | Supported Card Types:ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz CardSmart Card Reader/Writer, Keyboard Emulation, Card Emulation NFC Features: |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | Certifications:IEC/EN 62368, CE, UKCA, FCC, VCCI, KC, J-LIS, RoHS, REACH, WEEE, Microsoft® WHQLUSB CCID, PC/SCCompliance: |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux®, macOS, Android™, iOS/iPadOS (16 or above) |
Customer Reviews and Feedback
Customer feedback shines a positive light on the ACR1552U. Many users highlight its reliability and efficiency, especially in high-demand situations. The ability to read and write various NFC cards and tags quickly has pleased businesses operating in fast-paced environments.
Quotes from Customers:
- “The integration was seamless, and we’ve noticed a significant decrease in transaction times!”
- “A must-have for our event management. The NFC reader works perfectly with our app!”
FAQs About the ACR1552U
Q1: How do I set up the ACR1552U NFC reader? A1: The device connects via USB to your computer or terminal. After physical setup, install the necessary drivers provided with the product.
Q2: Is the ACR1552U compatible with all smart cards? A2: It supports a wide range of smart cards compatible with ISO 14443 standards, including MIFARE® and NTAG chips.
Q3: Can I use it for mobile payments? A3: Yes, you can use this reader for various contactless payment solutions such as Google Pay and Apple Pay.
For more details regarding the ACR1552U NFC Reader, or to obtain pricing, feel free to contact us today! Its quality and functionality make it an essential tool in any transaction-driven environment. With the evolution of digital transactions, investing in the right technology is critical to ensure that your business stays competitive.
