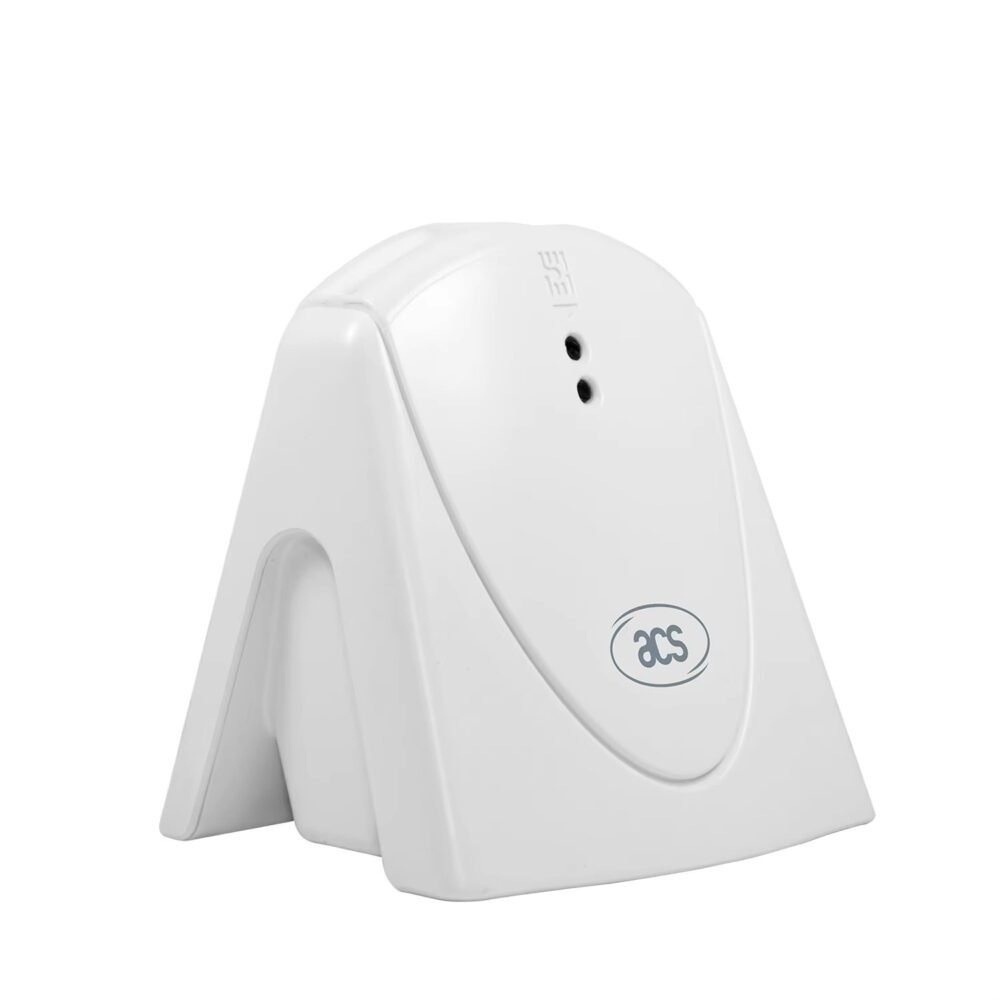

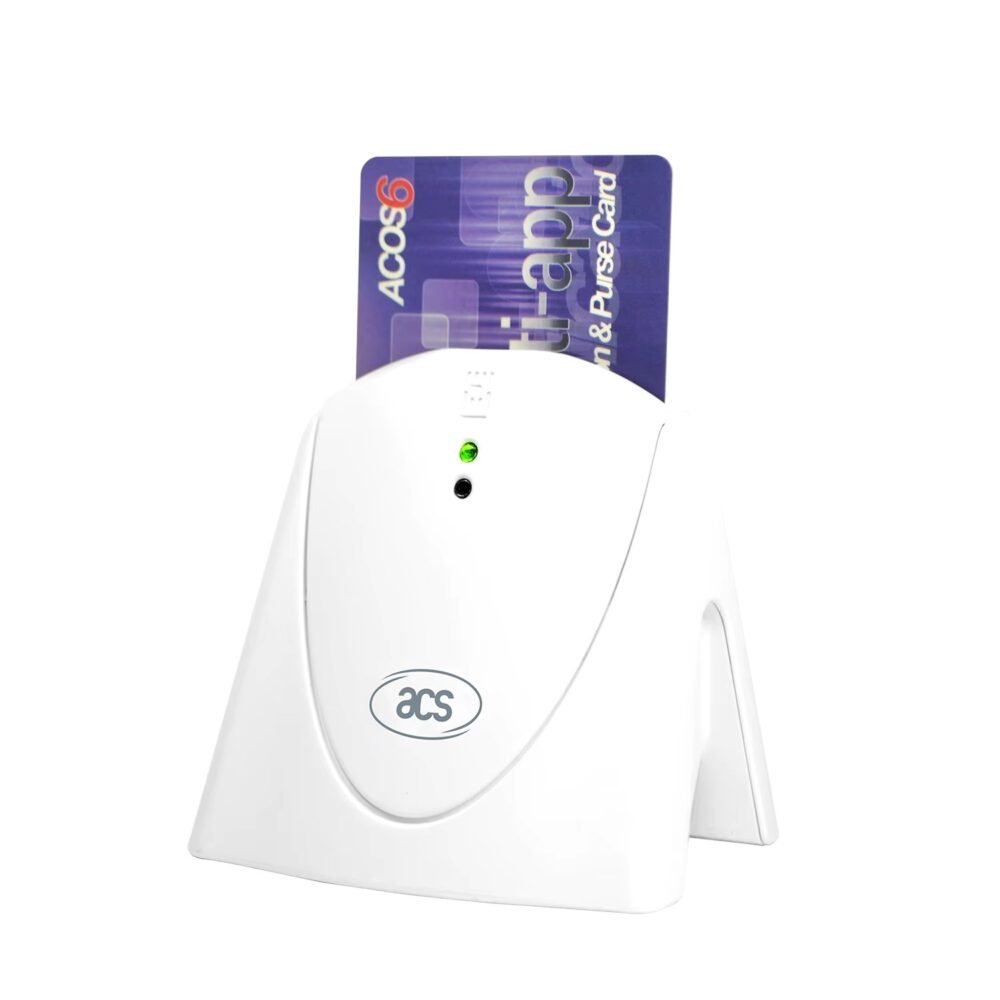

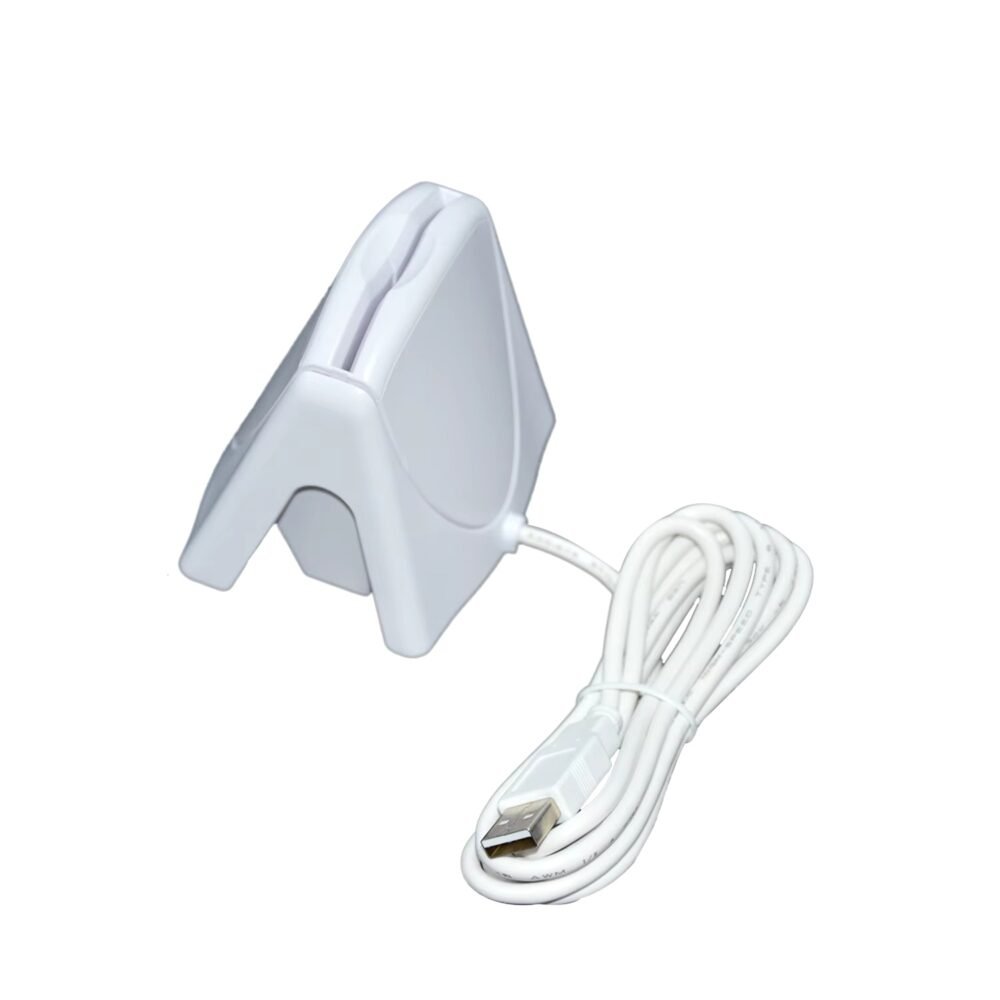

ACR39U-H1 Smart Card Reader – Upright USB Contact Card Reader for e-Banking & Access Control
Why ACR39U-H1 Reader?
Organizations and individuals face challenges in secure card authentication for e-Government services, access control, and e-Banking applications. Manual verification is error-prone, slow, and inefficient.
Solution: The ACR39U-H1 Smart Card Reader enables upright insertion of smart cards for intuitive and fast operations. It supports ISO 7816 Class A, B, and C cards, microprocessor cards (T=0/T=1), memory cards, and Malaysian Mykad.
Data Value: With read/write speeds of up to 600 Kbps and durability of 200,000 insertion cycles, it ensures rapid, reliable, and long-lasting card processing. EMV™ Level 1 and PBOC certifications confirm its compliance with global e-payment standards.
Key Features
- Upright Card Insertion: Streamlined design for convenient and error-free card usage.
- Broad Card Compatibility: Supports ISO 7816 Class A/B/C, CAC, SIPRNET, microprocessor, memory, and Mykad cards.
- High-Speed USB Interface: USB 2.0 Full Speed, compatible with USB 3.0, plug-and-play CCID support.
- Secure & Reliable: Advanced protection against short circuits; trusted for e-Banking, e-Payment, and access control.
- Versatile Integration: PC/SC and CT-API compliant, supporting Windows®, Linux®, macOS®, Solaris™, and Android™ 3.1+.
Technical Specifications
| Category | Parameter | Details |
|---|---|---|
| Dimensions | mm | 71.5 × 80 × 80 |
| Weight | g | 174 |
| USB Interface | Protocol | USB CCID, USB 2.0 Full Speed |
| Connector | Type-A | USB Type-A |
| Card Slot | Type | 1 Full-sized ISO 7816 slot |
| Smart Card | Standards | ISO 7816 Parts 1-4, Class A/B/C |
| Card Protocol | T=0, T=1, Memory Cards, Mykad, CAC, PIV, SIPRNET | |
| Read/Write Speed | Up to 600 Kbps | |
| Certifications | EMV™ Level 1, PBOC Level 1, Microsoft® WHQL, TAA | |
| Compliance | CE, FCC, RoHS, REACH, WEEE, UKCA, IEC/EN 62368 |
Applications
- Secure Access Control: Streamlined authentication for offices, government facilities, and restricted areas.
- e-Banking & e-Payment: Reliable card reading for secure online transactions.
- Identity Verification: Supports government ID cards, Mykad, CAC, and SIPRNET cards.
Frequently Asked Questions
Q1: Which smart cards are supported?
A1: ISO 7816 Class A/B/C, microprocessor cards (T=0/T=1), memory cards, Mykad, CAC, PIV, and SIPRNET.
Q2: Is it plug-and-play?
A2: Yes, it supports USB CCID and requires no additional drivers for most OS environments.
Q3: Which operating systems are compatible?
A3: Windows®, Linux®, macOS®, Solaris™, and Android™ 3.1+.
Q4: How durable is the ACR39U-H1?
A4: Designed for up to 200,000 card insertion cycles.
Q5: Is it suitable for e-payment applications?
A5: Yes, certified EMV™ Level 1 and PBOC compliant.
Conclusion:
The ACR39U-H1 Smart Card Reader combines speed, security, and reliability in a compact upright design. Its certifications, USB plug-and-play convenience, and wide OS compatibility make it an optimal solution for secure identity verification, e-payment, and access control.
