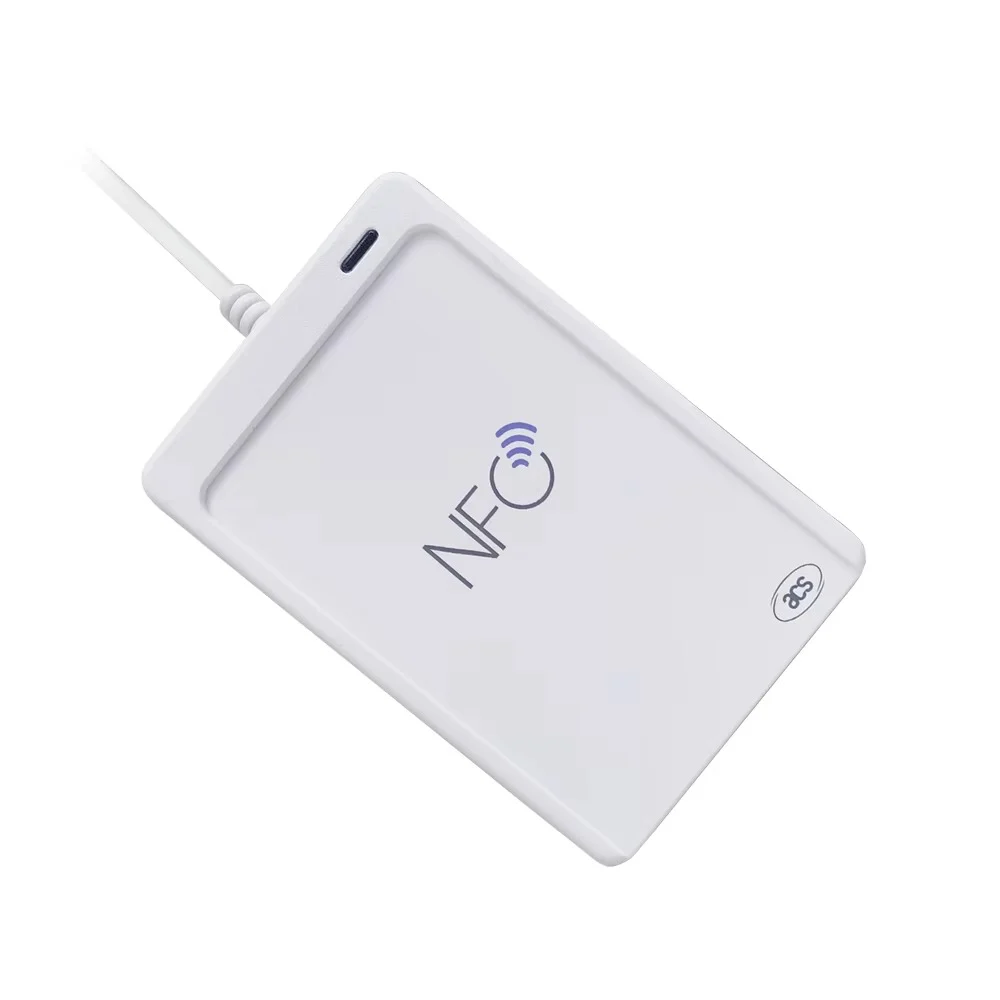

ACS ACR1552U USB NFC Reader IV – 13.56MHz CCID & PC/SC Compliant Secure NFC Smart Card Reader

ACR1552U USB NFC Reader IV

13.56MHz CCID & PC/SC Compliant Secure NFC Smart Card Reader with SAM & FIDO Support

❓ Enterprise Challenge

In modern access control, digital identity, e-Government, and financial systems, enterprises face three recurring challenges:

• Fragmented support for multiple contactless standards

• Insufficient hardware-level security for authentication

• Limited compatibility with FIDO-based passwordless login

Generic NFC readers often fail to meet enterprise compliance, long-term deployment, and security certification requirements.

✅ Solution Overview

The ACS ACR1552U USB NFC Reader IV is engineered as an enterprise-grade 13.56MHz contactless smart card reader, delivering secure authentication, broad NFC compatibility, and FIDO readiness in a compact USB form factor.

Built on USB CCID & PC/SC standards, the ACR1552U integrates a dedicated SAM slot for cryptographic key management and supports high-speed NFC communication up to 848 kbps, ensuring secure and reliable operation in production environments.

📊 Technical Data Value

🔐 Security & Authentication Capabilities

• Built-in SAM Slot (ISO 7816 Class A)
  Enables secure key diversification, mutual authentication, and encrypted communication

• FIDO (Fast IDentity Online) Support
  Compatible with FIDO-enabled devices (e.g. YubiKey, PocketKey) for:

  • Passwordless login

  • Strong 2FA authentication

• Extended APDU Support (up to 64 KB)
  Suitable for secure ID and payment-grade applications

📡 NFC & Contactless Technology Support

• Operating Frequency: 13.56 MHz

• Read/Write Speed: Up to 848 kbps

• Optimized Read Range: Up to 70 mm (tag dependent)

• Anti-collision Algorithm: Supported

Supported Standards & Card Types

• ISO/IEC 14443 Type A & B

• ISO/IEC 18092 (NFC)

• ISO/IEC 15693

• MIFARE® (Classic, DESFire, Ultralight)

• FeliCa

• NFC Tags (Type 1–4)

• SRI/SRIX, CTS, Innovatron, Picopass, Topaz

🖥 Interface, OS & Developer Support

• USB Interface:

  • USB Type-A (ACR1552U-M1)

  • USB Type-C (ACR1552U-MF)

• Protocol: USB CCID

• Plug & Play: No proprietary driver required

Operating System Compatibility

• Windows®

• Linux®

• macOS

• Android™

• iOS / iPadOS (16 or above)

API & SDK Support

• PC/SC

• CT-API (via PC/SC wrapper)

• ACS SDK available for system integration

🏭 Certifications & Compliance

The ACR1552U is designed for global enterprise deployment, meeting major regulatory and safety standards:

• Certifications:
  CE, FCC, UKCA, VCCI, KC, J-LIS
  IEC/EN 62368
  Microsoft® WHQL

• Environmental Compliance:
  RoHS, REACH, WEEE

• Industry Compliance:
  USB CCID, PC/SC

🧩 Typical Enterprise Applications

Designed for systems requiring secure contactless authentication:

• e-Government & National ID systems

• Banking & financial authentication

• Access control & secure login

• Healthcare identity verification

• FIDO-based passwordless authentication

• NFC ticketing & enterprise credential management

🏁 Conclusion

With ACS’s 20+ years of smart card reader expertise, the ACR1552U USB NFC Reader IV delivers a future-proof, security-focused NFC platform for enterprises that demand compliance, reliability, and scalable deployment.

It is not just an NFC reader — it is a secure authentication device ready for modern identity ecosystems.

📋 Key Specifications (Quick View)

❓ Frequently Asked Questions (FAQ)

Q1: Is the ACR1552U suitable for FIDO authentication systems?

Yes. The ACR1552U fully supports FIDO authentication, enabling secure passwordless login and strong 2FA with NFC-enabled FIDO devices.

Q2: Can this reader be used in government or banking projects?

Absolutely. With SAM support, PC/SC compliance, and global certifications, it is widely suitable for e-Government, banking, and regulated environments.

Q3: Does it support firmware upgrades?

Yes. The reader supports USB firmware upgradability, allowing long-term maintenance and feature updates.

Q4: Which operating systems are supported?

Windows, Linux, macOS, Android, and iOS/iPadOS (16+) are all supported.

Q5: What makes ACR1552U different from generic NFC readers?

Enterprise security (SAM + FIDO), extended APDU support, certified compliance, and ACS’s long-term product availability distinguish it from consumer-grade NFC readers.
