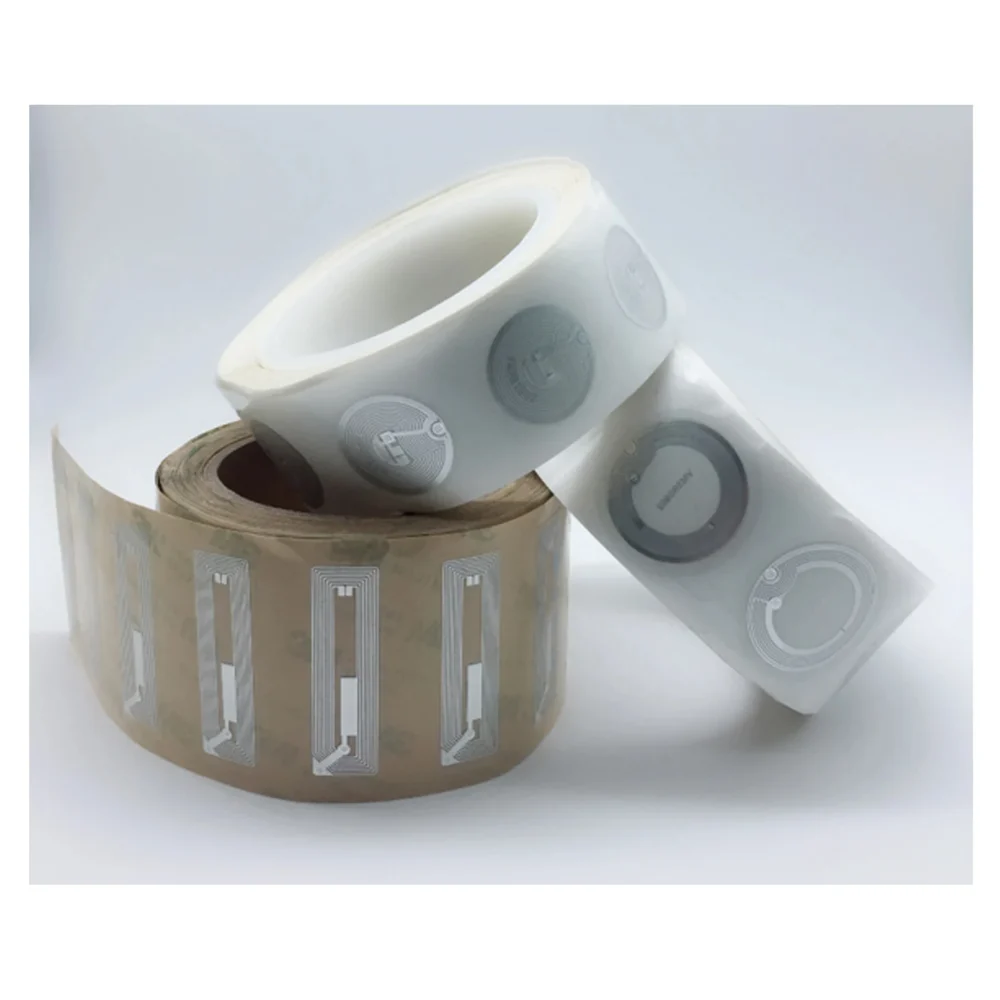

NXP MIFARE Ultralight EV1 NFC Inlay
Product Overview
The NXP MIFARE Ultralight EV1 NFC Inlay is a high-performance passive NFC solution designed for modern contactless applications. Operating at 13.56 MHz and fully compliant with ISO14443A, it delivers reliable, fast, and secure communication for a wide range of uses. This inlay is tailored for OEMs, system integrators, and product developers in global markets including Europe, the US, Turkey, and India.
Market Background
As NFC adoption grows across retail, event management, public transportation, and digital marketing, businesses increasingly require small, cost-effective, and reliable NFC solutions. The Ultralight EV1 inlay addresses the need for secure data transfer, fast read/write performance, and integration flexibility in high-volume production environments.
Applications & Use Cases
- Access Control: Secure entry for offices, events, and restricted areas.
- Ticketing & E-Pass: Contactless tickets for transport, concerts, and events.
- Marketing & Loyalty Programs: NFC-enabled engagement through smart promotions, coupons, or digital content.
- Social Media & Mobile Interaction: Quick linking to websites, product demos, or promotional campaigns.
Customer Needs & Solutions
- Reliable Data Communication: Ensures consistent NFC performance across devices and readers.
- Durable & Flexible: Withstands environmental variations (-40 °C to 70 °C) and high humidity levels.
- Customizable Design: Compatible with various inlay sizes and surface materials (PET, PVC, PP, coated paper) to match different product integrations.
- High Security & Longevity: 1KB user memory with 100,000 write cycles, ensuring secure and durable operations for long-term deployments.
Key Advantages
- Fast & Secure Communication: Supports NFC Type A for instant interaction.
- Versatile Integration: Can be embedded into stickers, labels, wristbands, or cards.
- OEM-Friendly: Available in roll format for bulk production and easy assembly.
- Global Compatibility: Fully ISO14443A compliant for worldwide NFC devices.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | NXP MIFARE Ultralight EV1 NFC Inlay |
| Antenna Size | 52 × 15 mm |
| Wet Inlay / Blank Label Size | 56 × 18 mm |
| Reading Range | 1–5 cm (depends on reader & tag size) |
| Antenna Substrate | PET |
| Tag Surface Material | Coated Paper (PVC, PET, PP optional) |
| Antenna Process | Aluminum ETCH (10 μm) |
| Protocol | ISO14443A |
| Operating Frequency | 13.56 MHz |
| User Memory | 64 Byte |
| Working Mode | Passive |
| Write Cycles | 100,000 |
| Operating Temperature / Humidity | -40 °C ~ 70 °C / 20–90 % RH |
| Storage Temperature / Humidity | -20 °C ~ 50 °C / 20–90 % RH (no condensation) |
| Applications | Access Control, Ticketing, Social Media, Marketing, Loyalty Programs |
| Delivery Format | Roll (1,000–5,000 pcs/roll, 4 rolls/carton) |
