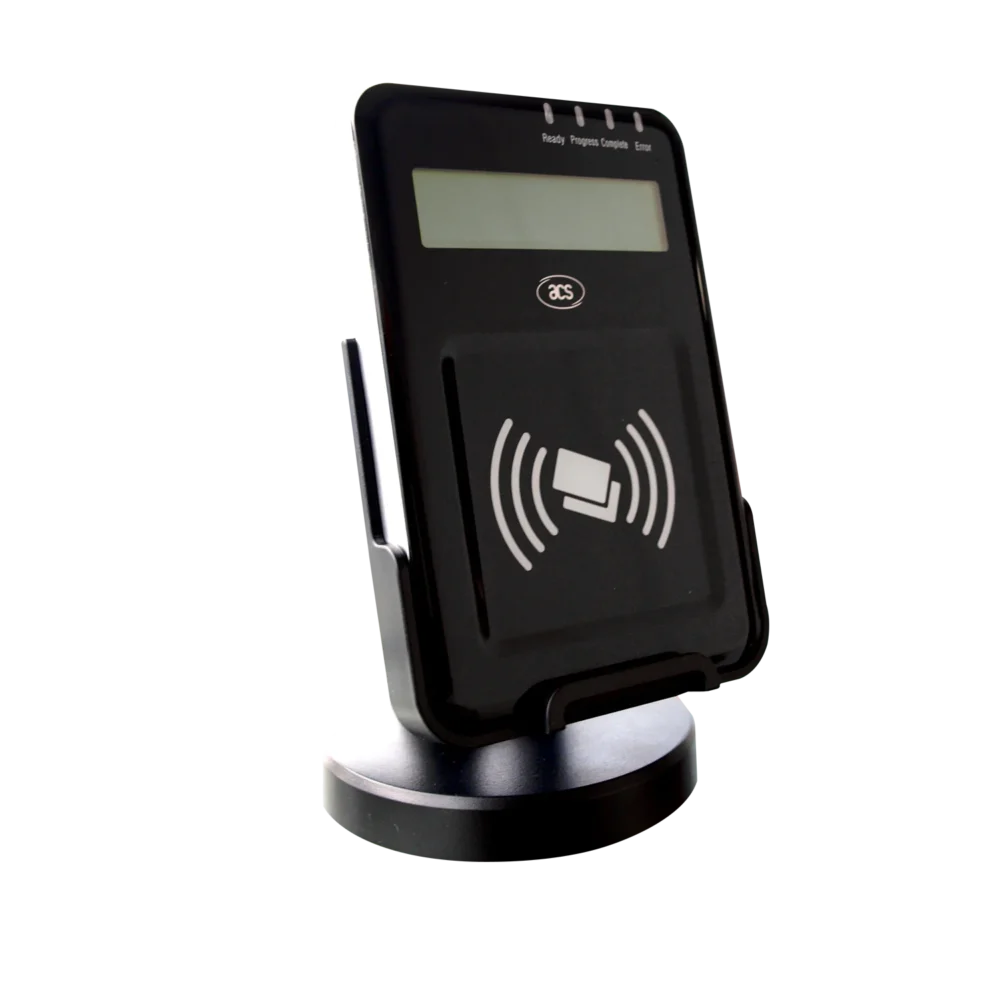

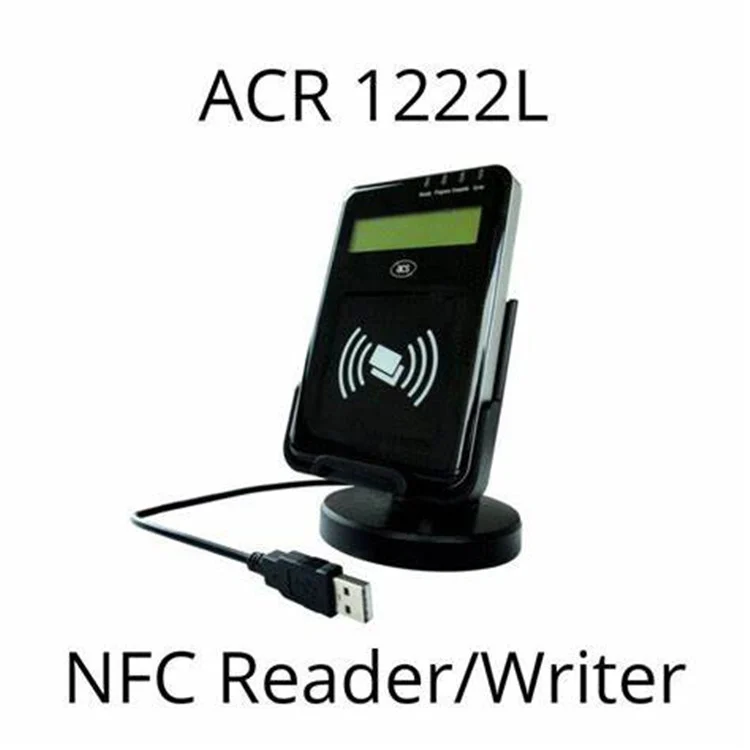

USB NFC Card Reader with LCD | ACS ACR1222L Contactless Smart Card Reader
The ACR1222L VisualVantage USB NFC Reader with LCD by ACS (Advanced Card Systems) is a powerful ACS contactless smart card reader engineered for enterprise-grade NFC applications that demand secure authentication, broad protocol compatibility, and superior user experience. With a built-in graphic LCD and enhanced interaction features, the ACR1222L is ideal for high-throughput environments including contactless access control, secure login systems, NFC terminal interfaces, and interactive self-service kiosks.
Designed for robust integration and deployment, the ACR1222L fully supports ISO/IEC 14443 Type A & B, ISO/IEC 18092 (NFC Forum), and a wide range of NFC tag types including MIFARE®, FeliCa, and ISO 14443 tags. Its PC/SC and CCID compliance enables seamless plug-and-play operation across Windows, macOS, and Linux, while the integrated SAM (Secure Access Module) slots deliver enhanced cryptographic security for enterprise workflows.
🔍 Key Features
✅ Enterprise-Level Contactless & NFC Support
Fully compliant with ISO/IEC 14443 Type A & B and ISO/IEC 18092 (NFC Forum)
Supports all 4 NFC tag types
Compatible with:
MIFARE® Classic
MIFARE Ultralight
MIFARE DESFire®
FeliCa
NFC Read/Write performance: up to 424 kbps
Contactless reading distance: up to 50 mm (tag dependent)
💻 Connectivity & Compatibility
USB 2.0 Full Speed Interface
PC/SC and CCID compliant for driver-free installation
Broad OS support:
Windows
macOS
Linux
Compatible with ACS SDKs and developer APIs
📊 Interactive LCD & User Feedback
Two-line graphic LCD with multi-directional navigation
Multi-language support (English, Chinese, Japanese, major European languages)
Four user-controllable LEDs
Buzzer for audible feedback
Improves user experience and reduces operational ambiguity
♻️ Firmware Upgradability
USB-based firmware update support
Enables feature enhancements and security updates
Ensures future-proof deployment
🛠 Typical Applications
NFC Access Control Systems
Smart Card Authentication & Secure Login
Interactive Self-Service Kiosks
Contactless Payment Terminals
Enterprise Identity Verification
📈 Why Choose ACS ACR1222L Contactless Smart Card Reader?
Trusted ACS contactless solution with 20+ years in smart card technology
Designed for enterprise security, interoperability, and long-term reliability
PC/SC & CCID compliance for seamless system integration
SAM support for advanced cryptographic protection
Optimized user interface with LCD, LEDs, and buzzer feedback
🔎 Product Specifications (Quick-View Table)
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H) With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H) |
| Weight (g) | Main Body: 173 g With Stand: 415 g |
| USB Interface | |
| Connector Type | Standard Type A |
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Power Source | From USB Port |
| Cable Length | 1.5 m, Fixed |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO18092, NFC Tags FeliCa |
| SAM Card Interface | |
| Number of Slots | 3 Standard SIM-sized Card Slots |
| Standard | ISO 7816 Class A (5 V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LCD | Graphical LCD with Yellow-Green Backlight Resolution : 128 x 32 pixels Number of Characters: 16 characters x 2 lines |
| LED | 4 single-color: Green, Blue, Orange and Red |
| Buzzer | Monotone |
| Other Features | |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 18092 ISO 14443 ISO 7816 (SAM Slot) USB Full Speed PC/SC CCID VCCI (Japan) KC (Korea) Microsoft® WHQL CE FCC RoHS REACH |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
❓ Frequently Asked Questions (FAQ)
Q1. What card types does the ACR1222L Contactless Smart Card Reader support?
A: The ACR1222L supports ISO/IEC 14443 Type A & B, ISO/IEC 18092 (NFC Forum), and NFC tag types including MIFARE Classic, MIFARE Ultralight, MIFARE DESFire®, and FeliCa.
Q2. Can the reader display status messages on its screen?
A: Yes. The built-in two-line graphic LCD can display operational prompts, status updates, and multi-language messages to improve user experience and reduce errors.
Q3. Is the ACR1222L Contactless Smart Card Reader compatible with modern operating systems?
A: Absolutely. It is PC/SC compliant and connects via USB, supporting Windows, macOS, and Linux platforms. No special driver installation is required for basic operations.
Q4. Does the ACR1222L reader support secure authentication for enterprise systems?
A: Yes. The ACR1222L Contactless Smart Card Reader includes three ISO 7816-compliant SAM slots for cryptographic key storage and secure smart card authentication workflows, suitable for access control and secure login applications.
Q5. Can I update the firmware on the ACR1222L?
A: Yes. The reader supports USB firmware updates, allowing you to enhance functionality and maintain security over its lifespan.
Q6. What applications is this ACR1222L Contactless Smart Card Reader ideal for?
A: The ACR1222L Contactless Smart Card Reader is widely used in:
NFC-based access systems
Secure authentication stations
Public self-service kiosks
Contactless terminals requiring real-time feedback
The ACR1222L VisualVantage USB NFC Reader with LCD is a reliable choice for organizations seeking a USB NFC card reader that combines enterprise-grade security, broad ISO 14443 compatibility, and enhanced user interaction. Designed to support secure smart card authentication and contactless workflows, it integrates seamlessly into existing access control, identity management, and NFC-enabled systems.
